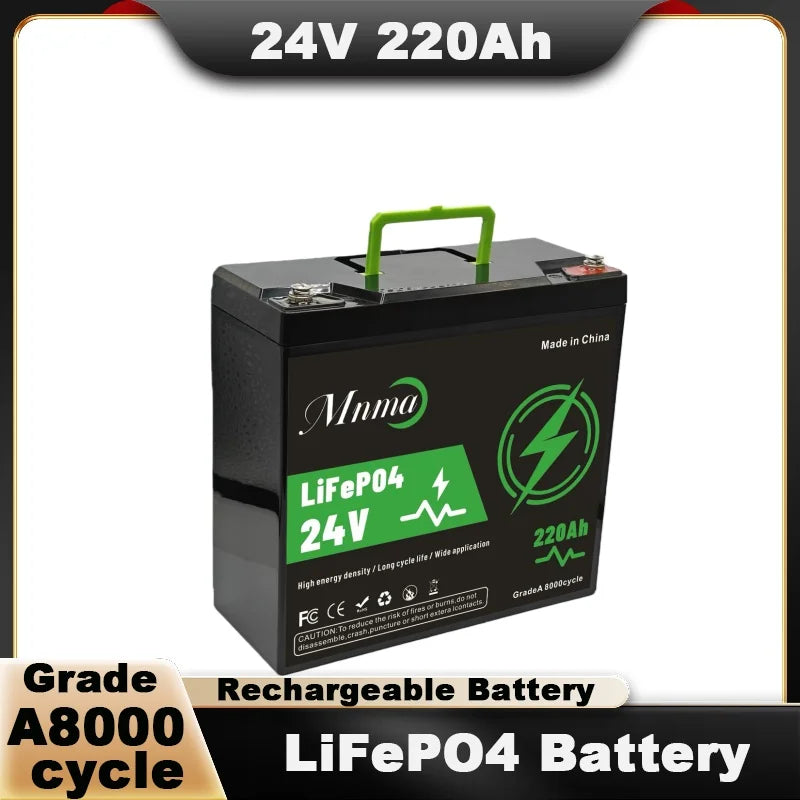

LiFePO4 Battery 24V 220Ah, 8000+ Cycle Life, Suitable for Solar Power Systems, RVs, Boats, Off-road Travel, and Fishing
LiFePO4 Battery 24V 220Ah, 8000+ Cycle Life, Suitable for Solar Power Systems, RVs, Boats, Off-road Travel, and Fishing
SPECIFICATIONS
Application: MOBILE PHONE,Game Console,Drone,Electric Bicycle,E-scooter,Fan,Power Tool,Robot,Electric fitness equipment,EV,Marine Boat,Trolling Motor,Home Energy,Solar Power Storage,Off-Grid Solar Power System,Others,Scooter
Brand Name: MNMA
Certification: CE,Dot,UL,KC
High-concerned chemical: none
Model Number: 21700
Nominal Capacity: 220000Ah
Origin: Mainland China
Rated Voltage: 24V
Size: 18*17*5.7
Type: Li-Ion
Weight: 5.2
How to check logistics?
Log in to this website: https://www.17track.net/en
24V 200Ah LiFePO4 Battery Pack - Product Specification Sheet
Product Overview
This is a high-performance 24V Lithium Iron Phosphate (LiFePO4) battery pack, built with premium Grade A cells and an advanced 200A SMT BMS. It is engineered for exceptional safety, long cycle life, and high power output, making it ideal for solar energy storage, RVs, marine applications, and industrial equipment.
1. General Specifications
Parameter |
Specification |
Battery Chemistry |
Lithium Iron Phosphate (LiFePO4) |
Nominal Voltage |
25.6 V |
Nominal Capacity |
100 Ah-200 Ah(at 0.2C discharge rate) |
Energy |
2560 Wh-5120 Wh |
Internal BMS |
200 A (SMT Technology) |
Case Material |
ABS Engineering Plastic |
Ingress Protection (IP) |
IP65 |
2. Key Performance Parameters
Charging Parameters
Charge Voltage: 29.2 V ± 0.2 V
Recommended Charge Current: 20 A
Maximum Charge Current: 40 A
Charge Cut-off Voltage: 29.2 V
Discharge Parameters
Maximum Continuous Discharge Current: 100 A
Maximum Pulse Discharge Current: 200 A (for less than 3 seconds)
Discharge Cut-off Voltage: 17.6 V
Cycle Life & Self-Discharge
Cycle Life: > 8,000 cycles (at 0.2C rate, to 70% of initial capacity)
Self-Discharge Rate: ≤ 3.5% per month at 25°C (77°F)
